Band Saws

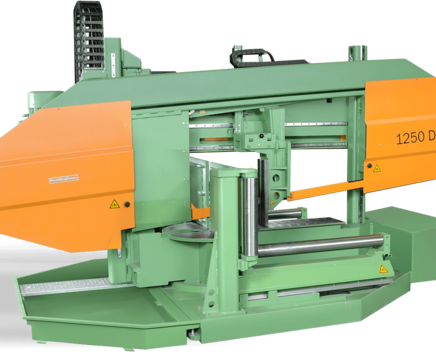

DG-1250
Material handling can make or break a CNC system's throughput capacity. Elimination of manually moving section sizes is critical when labor, and safety are of utmost importance.

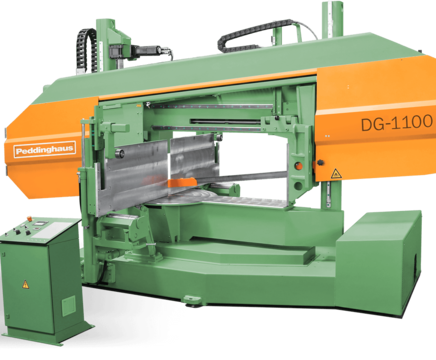

DG-1100
The Peddinghaus 1100 Miter Series saw delivers fast, accurate cutting up to 30 degrees in two directions of miter. The DG-1100 structural steel band saw employs Speed Sawing technology that guarantees rapid sawing - with no operator intervention - and no flood coolant residue to impede production

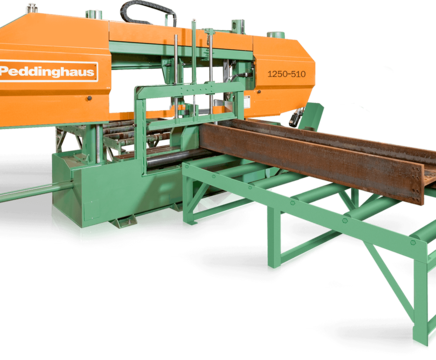

1250-510
The Peddinghaus 1250 Straight Cut Series saw is the industry benchmark for Speed Sawing of up to 50". Designed for speed but built with strength in mind, the 1250-510 is truly a whole new generation of Peddinghaus band saws.

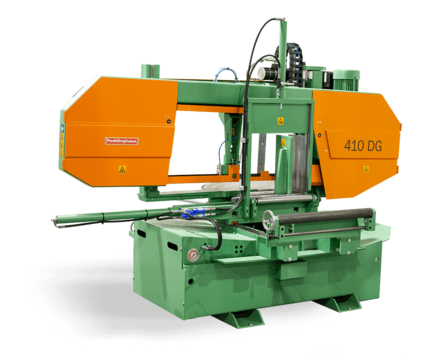

410-DGA
DOUBLE MITER CUT SAW
3 degree blade attack angle powered by a 7.5 HP motor and a tough gear box ensures accuracy and fastest cut times available
Electric ball screw feed technology maximizes cut performance and minimizes blade wear
Patented double miter band saw system allows material to be clamped regardless of cut angle
Precise saw blade guidance with pre-twist rollers and flat carbide guides, essential for the most accurate cutting
Stable, anti-vibration, welded construction of saw frame

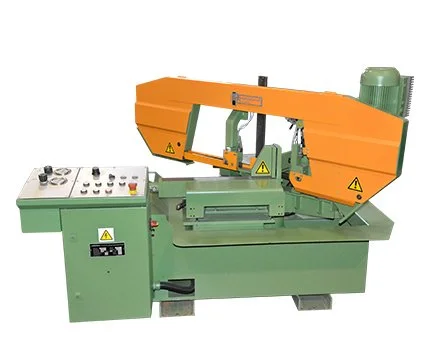

320 G-HSS
MITER CUT SAW
Rigid and fast workshop saw with 34 mm blade and 4 HP drive, stepless 15 - 150 m/ min
Automatic hydraulic cutting pressure and feed control, provides ultimate cutting performance while minimizing blade wear
Micro mist coolant system that ensures dry chips and a clean shopfloor
Fast adjustment of miter by scale, step-less from 90° - 30°
The swivel is directly above the intersection of saw blade and fix vice jaw so the datum measuring point does not change with the miter angle
Fast hydraulic clamping of the material
Material is always clamped at 90° regardless of the angle to be cut
Integrated chip collection tray
Precise saw blade carbide roller guidance
Hydraulic lowering and lifting of saw frame
Easy to operate control panel

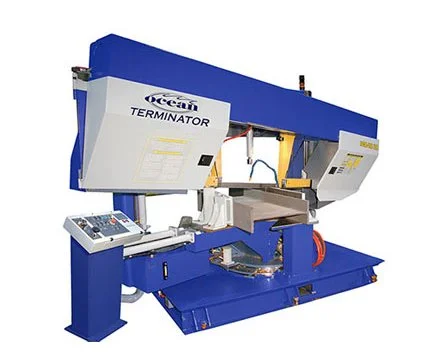

Ocean Terminator DCM18/42
DOUBLE MITER CUT SAW
The Ocean Terminator 18/42 Dual Column Dual Miter Band Saw is the largest saw that we distribute and is specifically designed for structural steel fabricators to handle the largest beams and profiles, and the heaviest sections that structural steel fabricators cut on a daily basis. The ability to miter cut both directions significantly reduces the material handling time, further improving your profitability.

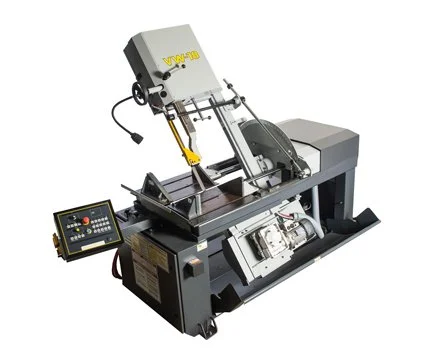

Hydmech VW-18
The VW-18 II is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.
This model is one of a kind in the HYDMECH line up with its saw head that can cut at 90° and be adjusted to cut at a 3° head cant.
Now available with optional powered head tilt and digital angle display.
Featuring a 22"H x 18"W capacity, 5 HP motor, and 1 1/4" blade, the VW18 II is a reliable choice for all your light to medium-duty, vertical metal cutting applications.

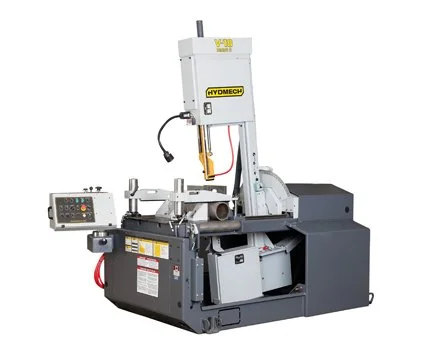

Hydmech V-18
The V-18 is a semi-automatic vertical band saw with the ability to miter from 45° left to 45° right.
A 2 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head advance/retract, blade tension, and guide arm movement.
Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.
Featuring a 18"W x 31"H capacity, 7.5 HP motor, and 1 1/4" blade, the V-18 is a reliable choice for all your vertical metal cutting applications.

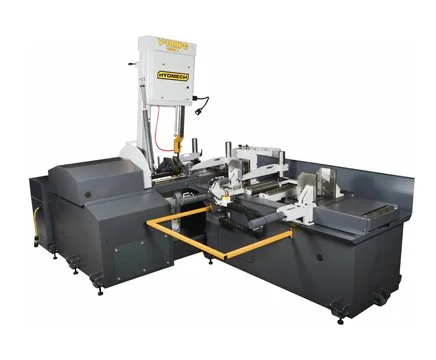

Hydmech V-18APC
The V-18APC is an automatic vertical band saw with the ability to miter from 45° left to 45° right.
The V-18APC is fast, with its high speed shuttle feed indexing up to 40" in a single movement. A 2 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head swing, head advance/retract, blade tension, guide arm, and shuttle movement. Its PLC control features storage of up to 99 jobs with the ability to run 5 in queue.
Featuring a 18"W x 20"H capacity, 7.5 HP motor, and 1 1/4" blade, the V-18APC is a reliable choice for all your vertical metal cutting applications.

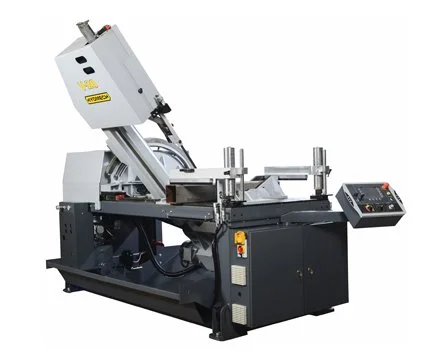

Hydmech V-20
The V-20 is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.
Its standard 4-degree forward approach angle provides increased efficiency in cutting of structural materials. Conveniently located on an articulating console on the front of the machine. The NEW WINDOWS 5.0 Touch Screen NC controller operates the Semi-Automatic cycle and allows for Manual operation as well. A wide variety of languages can be chosen for message screen display.
The double miter angle operation has an angle "Go To" function, which allows the operator to enter 2 desired angles up to 60 degrees and have the machine.
Featuring a 25"H x 20"W capacity, 10 HP VFD motor, and 1 1/2" blade, the V-20 is a reliable choice for all your vertical metal cutting applications.

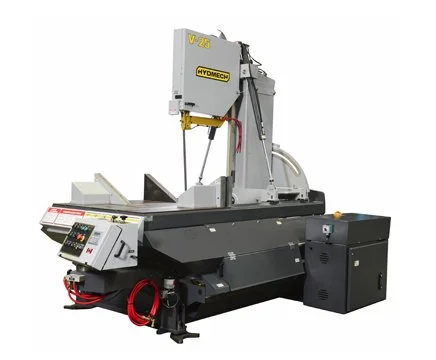

Hydmech V-25
The V-25 is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.
A 3 HP driven hydraulic pump supplies system pressure through both a two and three position directional valves controlling all vises, head swing, head advance/retract, blade tension, and guide arm movement.
Its standard 6° degree canted head allows for more efficient cutting and improved blade life.
Featuring a 30"H x 25"W capacity, 10 HP motor, and 1 1/2" blade, the V-25 is a reliable choice for all your vertical metal cutting applications.

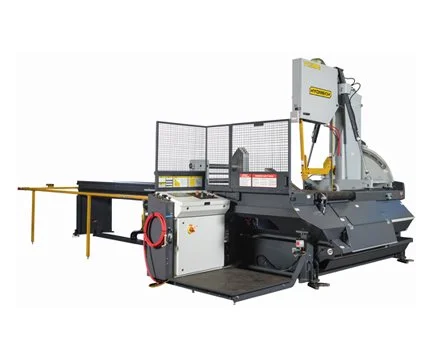

Hydmech V-25APC
The V-25APC is an automatic vertical band saw with the ability to miter from 60° left to 60° right.
The V-25APC is fast, with its high speed shuttle feed indexing up to 60" (120" optional) in a single movement. A 3 HP driven hydraulic pump supplies system pressure through both a two and three position directional valves controlling all vises, head swing, head advance/retract, blade tension, and guide arm movement. Its PLC control features storage of up to 1000 jobs with the ability to run 20 in queue.
Featuring a 30"H x 25"W capacity, 10 HP motor, and 1 1/2" blade, the V-25APC is a reliable choice for all your vertical metal cutting applications.

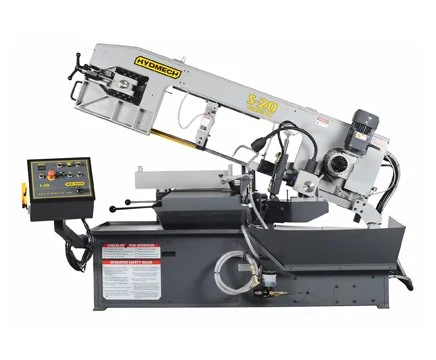

Hydmech S-20
The S-20 manual band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Featuring a 13"H x 18"W capacity at 90°, 3 HP motor, and 1" blade, the S-20 is a versatile machine ideal for use in tight working spaces.

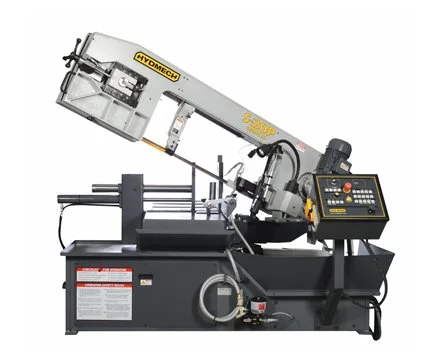

Hydmech S-20P
The S-20P, semi-automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Its digital LCD display shows machine mode, pieces cut, blade speed, blade tension, amperage draw of blade motor, cut duration, overall machine run time, and head position.
Featuring a 13"H x 18"W capacity at 90°, 3 HP motor, and 1" blade, the S-20P is a versatile semi-automatic scissor style band saw ideal for use in tight working spaces.

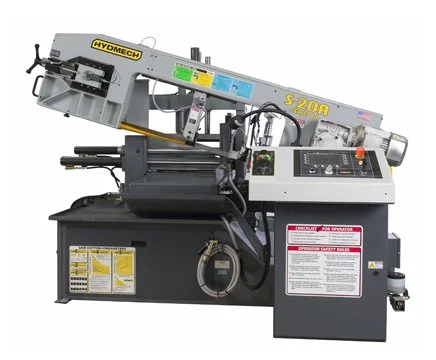

Hydmech S-20A
The S-20A, automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Featuring a 13"H x 18"W capacity at 90°, 3 HP motor, and 1" blade, the S-20A is a versatile, automatic scissor style band saw ideal for use in tight working spaces.

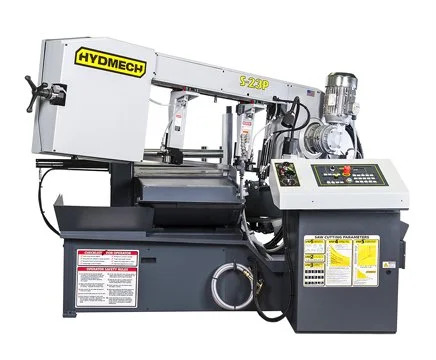

Hydmech S-23P
The S-23P is a semi-automatic horizontal pivot band saw providing exceptional miter cutting capability for light to medium duty applications.
Featuring a semi-automatic mode control with an LED readout for blade speed, blade tension, parts counter, head height adjustment, laser light, amperage draw of blade motor, cut duration, head position, and overall machine run time. All offered in several language choices.
An attractive option offered on this machine is the direct down feed option which provides easy adjustment of both head feed rate and cutting pressure.
The S-23P miters from 90° to 60°. Featuring a 16"H x 20"W capacity at 90°, 5.5 HP motor, and 1 1/4" blade, the S-23P semi-automatic horizontal pivot band saw is built solidly to give you maximum productivity.

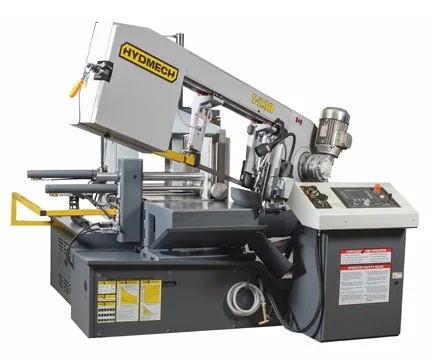

Hydmech S-23A
The S-23A is an automatic scissor style band saw providing exceptional miter cutting capability for medium duty applications.
Featuring an automatic mode control with an LED readout for blade tension, blade speed, blade height position, run time of the cut, blade drive motor amperage draw, part length, quantity required, piece count, job run time, total blade run time. All offered in several language choices.
The S-23A miters from 90° to 60°. Featuring a 16"H x 20"W capacity at 90°, 8.8 HP motor, and 1 1/4" blade, the S-23A automatic scissor style band saw is built solidly to give you maximum productivity.

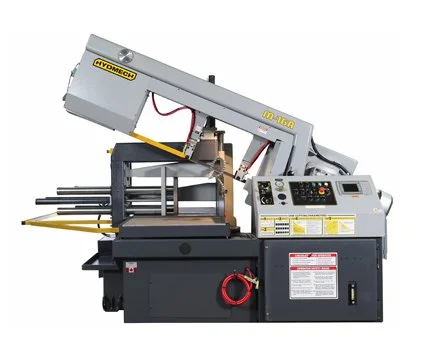

Hydmech M-16A
The M-16A is an automatic scissor style band saw providing exceptional miter cutting capability for heavy-duty applications.
It features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material. The M-16A miters from 90° to 60°.
Featuring a 16"H x 25"W capacity at 90°, 7.5 HP motor, and 1 1/4" blade, the M-16A is a reliable choice for your heavy-duty metal cutting applications.

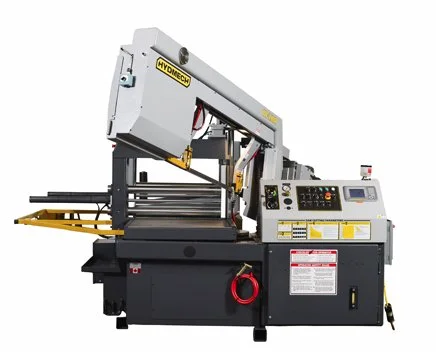

Hydmech M-20A
The M-20A is an automatic horizontal pivot band saw providing exceptional miter cutting capability for heavy-duty applications.
It features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material.
The M-20A band saws standard PLC 500 control features a "go to" function which allows for automatic alternating between programmed angles. The M-20A miters from 90° to 60°.
Featuring a 20"H x 30"W capacity at 90°, 10 HP motor, and 1 1/2" blade, the M-20A is a reliable choice for your heavy-duty metal cutting applications.

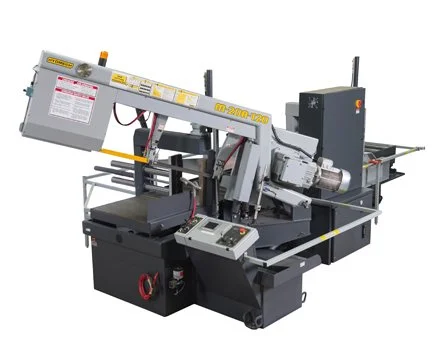

Hydmech M20A-120
The M-20A-120 is a heavy-duty automatic horizontal pivot band saw, its ability to miter cut from 90 to 60 degrees makes it an excellent machine for large fabrication jobs.
The machines PLC controller can be easily programmed, storing up to 99 different cutting jobs and includes a Job Queue function. The simple programming and user friendly controls switches minimize set up time and affords cost effective production.
Equipped with a 120" bar feed, its shuttle vise assembly capable of indexing up to 120" in a single stroke.
Featuring a 20"H x 30"W capacity at 90°, 10 HP motor, and 1 1/2" blade, the M-20A-120 is a reliable choice for your heavy-duty metal cutting applications.

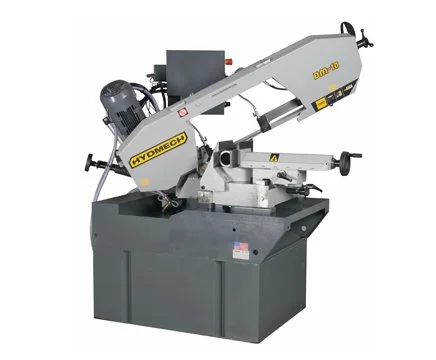

Hydmech DM-10
Exceptional cutting capability. This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces. Its cast iron head and vises are designed for rigidity - absorbing vibrations and ensuring accuracy during cutting. A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering.
From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-10 double miter band saw is solidly built to provide maximum productivity.

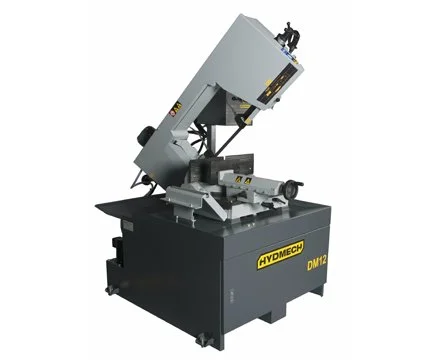

Hydmech DM-12
The HYDMECH DM-12 is a double miter band saw that provides exceptional cutting capability. This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces.
Its cast iron head and vises are designed for rigidity - absorbing vibrations and ensuring accuracy during cutting. A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering.
From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-12 double miter band saw is solidly built to provide maximum productivity

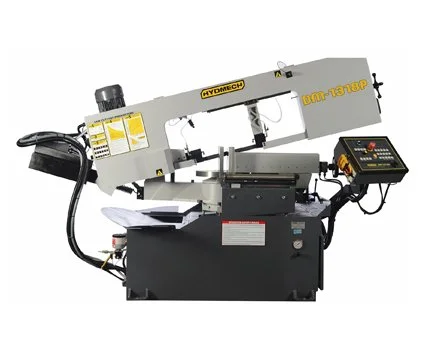

Hydmech DM-1318P
The DM-1318P double miter, semi-automatic band saw provides exceptional miter cutting for medium duty applications.
Its versatile swing head with easy to read angle scale, saves operator time. The heavy-duty gearbox and motor assembly ensures the DM-1318P will deliver maximum productivity. The cast iron double swivel head features an easy to read angle scale and "quick" stops at 90, 45, and 60 degree positions. The cast iron vise slides on linear ways which can be easily positioned to either the left or right side of the head and includes a quick release mechanism for rapid positioning.
Featuring a 13"H x 17 3/4" W capacity at 90°, 5.5 HP motor, and 1 1/4" blade, the DM-1318P is a versatile double miter band saw.
Contact For Sales
Tel: (570) 369-5700
