Burn Tables

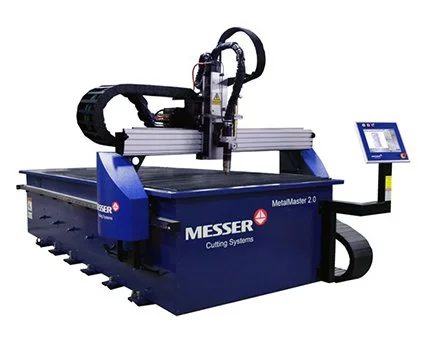

MetalMaster 2.0
HIGH PERFORMANCE - LOW PRICE
Compact low cost plasma and oxyfuel cutting machine that can be quickly installed and ready to use.
Thanks to the space saving, compact construction the machine can be quickly installed. Leveling screws makes easy alignment on a flat surface. Bilateral longitudinal drives with precision guiding system maintains accuracy over long periods of use. Positioning speeds of up to 1300 ipm with a fast, intelligent torch lifter minimize non-productive times.
With the easy to use Global Control 2.0 means your only three clicks away for loading the program to begin cutting.

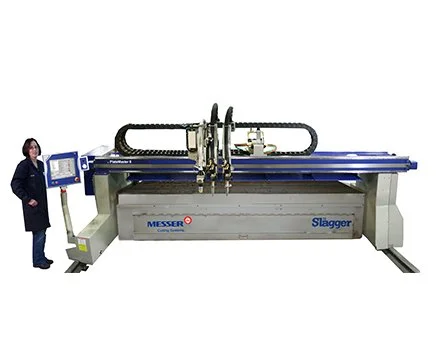

PlateMaster II
YOUR PATH TO PROFIT
The rugged floor mounted rails machined from 90 lb/yd crane rail stock. Add heavy, internally gusseted end trucks to support the dual-box beam are the foundations for smooth motion. The PlateMaster II can support two high performance plasma systems and up to six oxyfuel systems including the Messer ALFA Oxyfuel Torch system with integrated ignition and probe-less height control. Messer torch lifters provide a rugged, high speed, low maintenance and provide rigid torch support resulting in the smoothest cut finish.
Cutting stainless steel, mild steel and aluminum; the PlateMaster II can cut mild steel up to 12" and can utilize plasmas up to 800 amps. It provides maintenance-free digital brushless AC drives, providing smooth motion and accurately cut parts. The feature rich, easy to use, Global Control stands out among the competitions. With a compact touch screen you can access the process data base which makes every operator an expert.

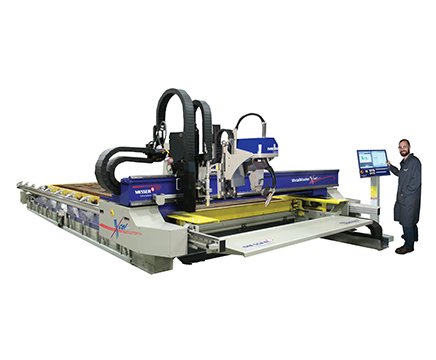

MetalMaster Xcel
LIGHTNING FAST CUTTING SPEEDS
The MetalMaster Xcel features state-of-the-art industry leading traversing speeds of 3000 IPM, robust design and high acceleration drives.
The MetalMaster Xcel can become two machines in one with the fiber laser / plasma combination. With this feature, cutting on the same piece part will increase productivity by allowing critical internal features to be cut with the fiber laser and external features to be cut at higher speeds with plasma, or can run individually for best quality and productivity.
The MetalMaster Xcel not only features state-of-the-art industry leading speed, it also has multiple tool capability allowing for maximum performance and versatility. Precision fiber laser / plasma option in conjunction with linear ways and helical gear rack creates the finest cut part edge quality. Additional options include oxyfuel cutting, drilling up to 3/8", marking, pipe and tube cutting, material handling featuring a table shuttle system and enclosure, and so much more.

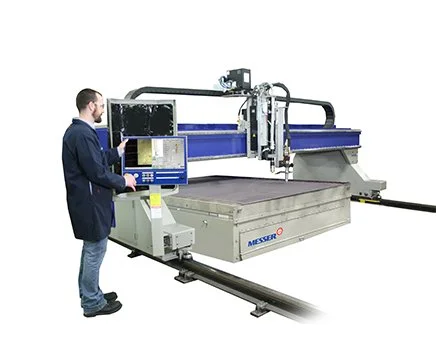

Titan III
POWERFUL PRODUCTIVITY, INCREDIBLE STRENGTH, & FLEXIBILITY
The Titan III combines Y-Axis linear ways with SureTrack pitch line rack and pinion drive to provide the smoothest cut edge and precise holes ever. Wider end trucks with maximum guide roller spread further stabilizes the X-Axis motion for the utmost cut edge performance. The Titan III can be configured with high definition plasma torches, and oxy-fuel torches and is designed to bevel cut, mark, and drill; perfectly suited for variety of industries.

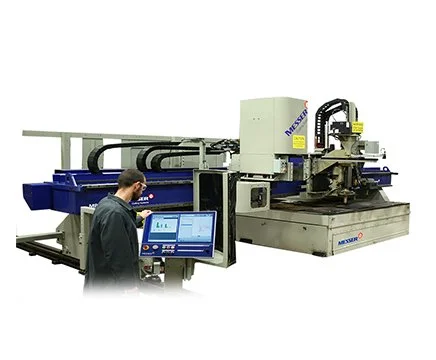

MPC2000
HEAVY-DUTY WORKHORSE WITH PROVEN PERFORMANCE
The MPC2000 features enhanced linear ways, long-life band drives, and larger end trucks. The MPC2000 is a heavy-duty workhorse that drills, laser cuts and bevel cuts, and marks with multiple processes, fast speed and superior cut quality.
The MPC2000 offers superior cut quality in a large gantry format with high accuracy and repeatability. This precision multi-process cutting machine is enhanced with programmable PL-1 lifters, including powerful AC drives coupled with our Global Control allows this heavy-duty constructed machine 24/7 operation, for maximum production.

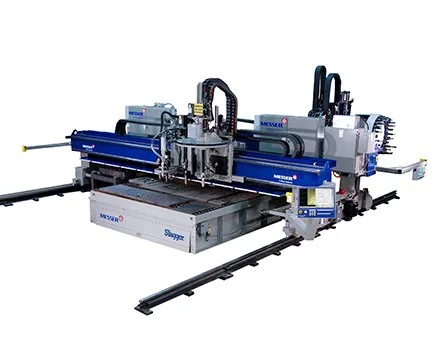

TMC4500 DB
IS THE DEPENDABLE WORKHORSE WITH SUPERIOR PERFORMANCE
The TMC4500 DB workhorse is the indusry leader when it comes to your thermal machining needs.
The TMC4500 DB is a heavy duty dual box-beam constructed gantry cutting machine, is built to perform in your rigorous production environment. Finite Element Analysis (FEA) design methods assure that your TMC is up to the task of cutting with multiple Plasma and Oxyfuel torches. With many options available, your TMC is customized to fit your cutting needs to improve your shop's productivity. Torch options include Vertical Torches, Triple Torch Oxyfuel Beveling, and Plasma Beveling with the unique compound Skew Rotator. The TMC4500 DB can utilize conventional Plasma, precision Plasma, Oxyfuel, and drilling capability up to 4" diameter holes plus a wide variety of marking techniques can be employed to meet your needs. This durable performer has proven its dependability in the demanding surroundings of shipyards, service centers, contract shops, and OEM manufacturers.

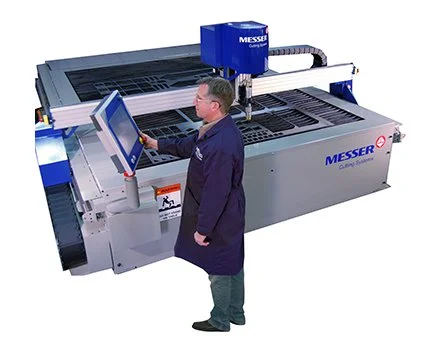

EdgeMax
MAXIMUM PERFORMANCE, PRODUCTIVITY AND VALUE
The EdgeMax by Messer Cutting Systems is designed as a compact machine with a rugged unitized steel table / frame, full capture bearing assemblies and a low-mass aluminum beam. Driven by duel brushless AC motors, the EdgeMax provides fast acceleration, precise motion and a very stable cutting platform. From precision plasma, conventional plasma or low power plasma systems, the EdgeMax provides the custom solution for your plate cutting needs.
Powered by the Messer Global Control with touch screen interface and the familiar Windows® screen layout, novice operators quickly master the machine. Coupled with Messer's Virtual & Visual Service, real-time direct applications help is available to new operators and programmers providing quick, accurate and complete answers to process and operational questions.
Water table option available.

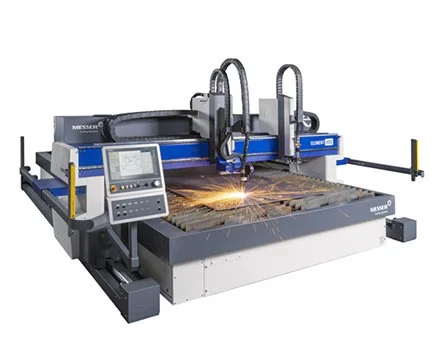

Element 400
HIGHLY FLEXIBLE ALL-AROUND CUTTING MACHINE
The new globally designed Element 400 cutting machine is the latest innovation from Messer Cutting Systems where form follows function. Included onboard is a new controller, the Global Connect, with redesigned HMI software and integrated OmniFab compatibility. This configuration features improved real-time transparency on maintenance, downtime status, and production reports that are transmitted through the controller, via a PC, or tablet. This machine can be equipped with many flexible options like plasma bevel cutting, oxyfuel cutting, marking, and cutting tables. Come see the new Delta Skew Plasma Rotating with cutting up to +/- 45 degrees, a high-acceleration drive with a C-axis +/-460° rotation, for maximum production and efficiency.

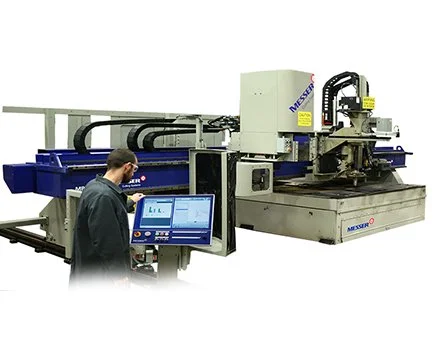

MPC 2000MC
THE MPC2000 MC IS AN INDUSTRY POWERHOUSE
The MPC2000 MC features our 2.5" drill coupled to a vertical 24 tool changer capable of milling, drilling and chip extraction.
The MPC2000 MC offers superior cut quality in a large gantry format with high accuracy and repeatability. This precision multi-process cutting machine is enhanced with programmable PL-1 lifters, including powerful AC drives coupled with our Global ControlPlus allowing this heavy-duty constructed machine 24/7 operation, for maximum production.

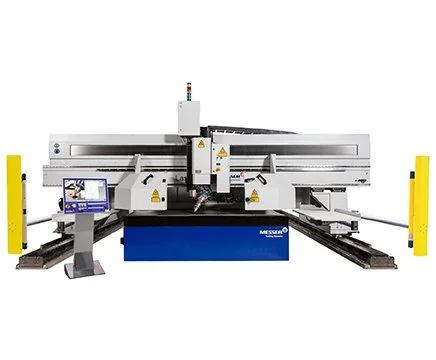

LaserMat II
TOP SHELF CUT QUALITY
The LaserMat® II is the technology leader in CO2 cutting systems for cutting large format steel plates. Perfect for simple vertical cuts, bevel cuts, and marking. The LaserMat® II excels in high positioning speeds and accuracy because of its rigid construction and linear guides. It also makes it possible to process plates 4.8' to 39.4' (3m x 12m) in one operation.
In contrast to a fiber laser system, with a CO2 laser a full enclosure is not necessary. The on-board laser beam protection hood guarantees laser safety and makes access for loading and unloading during the cutting operation.
