Pipe/Tube Benders

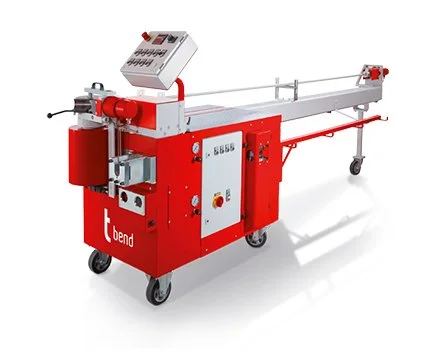

Transfluid Compact Mandrel bending
Compact, powerful yet competitively priced - our fully hydraulic mandrel bending machine features excellent bend quality and the simplest of handling. With electronic bend angle pre-selection, up to 8 bend angles can be preselected digitally (nominal values), displayed continually as actual values, and deactivated.
The requirement of additional devices for cutting ring pre-assembly, flaring, de-burring, hydraulic sawing and chamfering is possible on request.

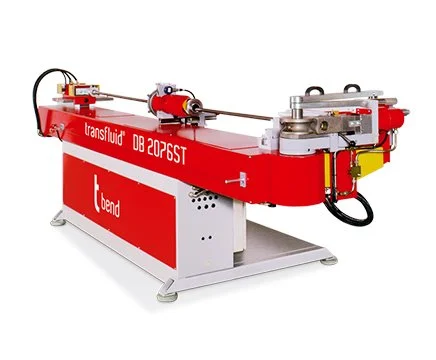

Transfluid Stationary Mandrel bending
Simple, powerful for convincing bending results - our semi-automatic bending machines for small and medium production runs render possible bending without limits. Configurable entirely to your needs.
Equipment variants:
Several bending levels
Radii between 1.5 x and 2.5 x D
Usable length 3,000 to 6,000 mm
Angle preselect from touch panel
Saving of entries
Off-set bend device
Digital displays

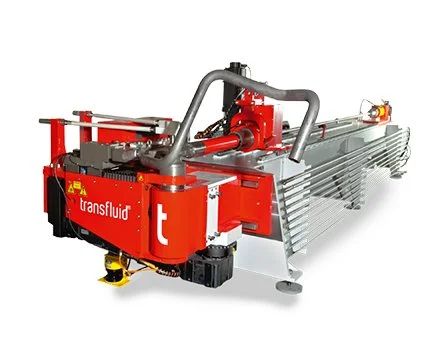

Transfluid CNC Mandrel bending w/ Fully Automated Control
High-precision, powerful and quick with a simple-to-use and freely programmable CNC touch panel controller. Our transfluid® CNC bending machines offer no-limit bending freedom thanks to their compact, leading-edge design. Extremely short set-up times ensure maximum level of flexibility. With full or partial electrical drive, the machines satisfy the most exacting of demands.
Customization creates optimal benefits for best possible results.
Equipment variants:
Several bending levels
Push bending of large bending radii
Centerline booster
Automatic loading
Weld seam positioning

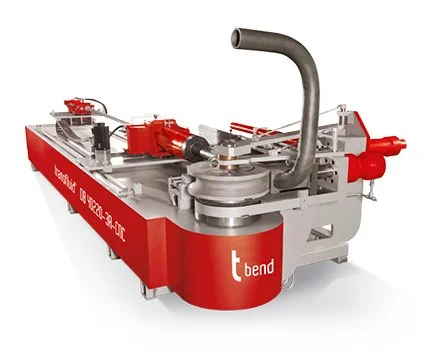

Transfluid CNC Mandrel Bending for Large Pipe
Stability and performance are stand-out features of these machines for large pipe diameters.
Precise bending is possible of thin and thick-walled tubes made of all materials - even with radii of 1.5 times the pipe diameter (and smaller).
This makes exacting machine and controller technology possible. Extremely short set-up times (sometimes shorter than 10 minutes) improve flexibility and increase cost-effectiveness.
The machine enables short bending radii with no problem - yet lowest levels of wall thinning. Particularly long durability is a stand-out feature of the very sturdy machine construction. All tube bending machines are supplied with a powerful and fully-automatic CNC control.

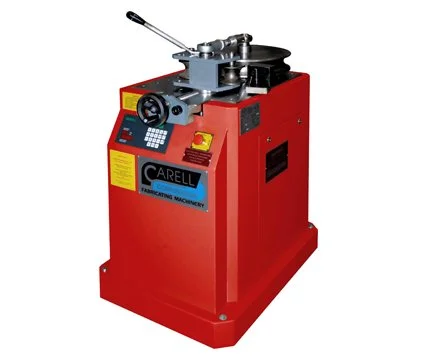

Carell ETM Series
A heavy-duty yet economical programmable tube/pipe bender manufactured from solid steel with a full range of tooling available.
